Description
The Superflex variant utilises a flexible reflective tube for versatile routing around trusses and ducts. Complete kit includes dome, diffuser, and flashing.
Key features:
- Diameter: 400mm
- Tube Length: 600mm, 1.2m, (Optional Extension: 1.8m / 2.4m / 3.0m / 3.6m)
- Rigid reflective Silvertube
- Acrylic UV-stabilised dome
- Standard Zinc flashing ( Colourband Flashing Addon Available)
Diameter: 400mm
Roof Compatibility:
- Corrugated Iron

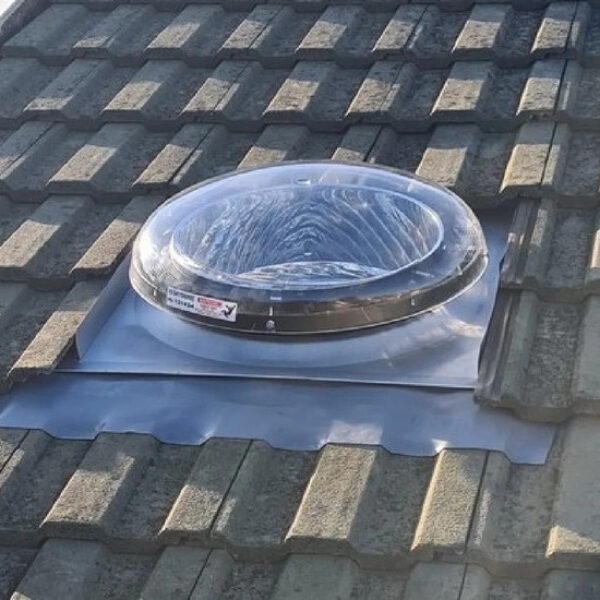

- Terracotta Tile
- Metal Deck
- 5-rib Roofing Profile
Use Case:
Daylighting for large residential areas (kitchens, living spaces) or commercial spaces.
Technical Specifications
- Tube Reflectivity: Proprietary Silver Coating
- Dome: Acrylic UV-inhibited
- Ceiling Diffuser: Standard Opal
- Flashing: Standard Zinc
- Optional Intech Lens for improved light diffusion
